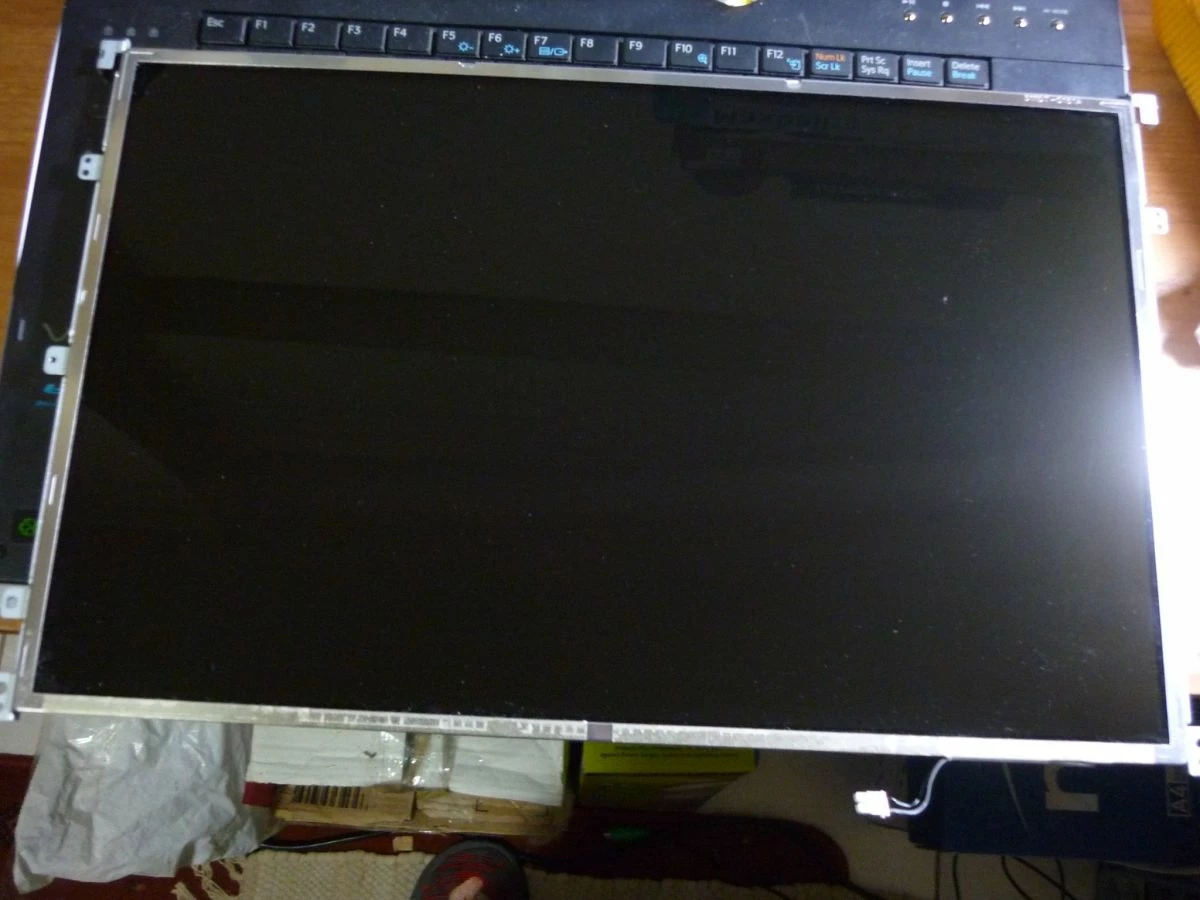

Vendora Γνήσια οθόνη Laptop LP171WP4 (TL)(04) 17.1” 1440×900 WXGA+ CCFL 30pin

LP171WP4-TL04 Application Features
Basic Info :
Panel Brand
LG.Philips
Panel Model
LP171WP4-TL04 9
Panel Size
17.1 inch
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
LP171WP4 (TL)(04), LPL2388
Reliability :
Operating Temp
0 ~ 50 °C
Storage Temp
-20 ~ 60 °C
RoHS State
Vibration Level
1.5G (14.7 m/s²)
Specific Features :

LP171WP4-TL04 Mechanical Details
Pixel Features :
Pixel Format
1440(RGB)×900 , WXGA+ , 99PPI
Configuration
RGB Vertical Stripe
Dot Pitch
0.085×0.255 mm (H×V)
Pixel Pitch
0.255×0.255 mm (H×V)
Mechanical Size :
Active Size
367.2×229.5 mm (H×V)
Bezel Area
370.6×232.9 mm (H×V)
Outline Size
382.2×244.5 mm (H×V)
Outline Depth
6.5 (Max.) mm
Outline Features :
Aspect Ratio
16:10 (H:V)
Shape Style
Wedge (PCBA Bent, T5.2mm)
Panel Weight
670/685g (Typ./Max.)
Panel Surface
Glare (Haze 0%), Hard coating (2H)
Form Factor
Flat Rectangle
Orientation
Landscape type
Holes & Brackets :
Side mounting holes (12-M2) on left, right, up bezel

LP171WP4-TL04 Optical Details
Basic Info :
Display Mode
TN, Normally White, Transmissive
Brightness
200 cd/m² (Typ.)
Contrast Ratio
350:1 (Min.) (TM)
Viewing Angle
45/45/15/35 (Min.)(CR10)
Optimum View
6 o’clock
Response Time
6/19 (Typ.)(Tr/Td) ms
Color Performance :
Display Colors
262K (6-bit)
Color Temp.
6485K
Chromaticity
Wx:0.313; Wy:0.329
Uniformity
2.00 (Max.)(13 points)
NTSC Ratio
46% NTSC (CIE1931 Color Space)
sRGB/Rec.709
64% coverage (CIE1931 Color Space)
Adobe RGB
48% coverage (CIE1931 Color Space)
DCI-P3
48% coverage (CIE1931 Color Space)
Rec.2020
34% coverage (CIE1931 Color Space)
